XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa
XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa
Couldn't load pickup availability
This thumb-sized LoRa dev kit, featuring the XIAO ESP32S3 and Wio-SX1262 LoRa module, is an ideal starter kit for Meshtastic and LoRa/LoRaWAN projects.
It supports WiFi, BLE, and LoRa, it includes a built-in power management chip and can be extended via IIC, UART, and other GPIO interfaces, with compatibility for Arduino development.

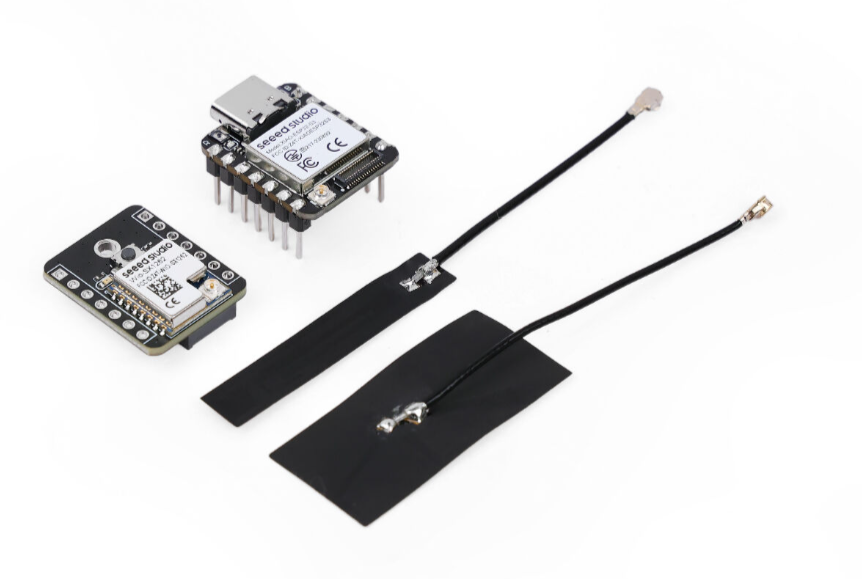

Comes with:
XIAO ESP32S2
Wio-SX1262 868MHz
WiFi/BLE Antenna
LoRa Antenna
|
ESP32S3 |
ESP32-S3R8, Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz |
|
LoRa |
Based on Semtech SX1262, supports 862-930MHz, |
|
BLE |
Bluetooth 5.0, Bluetooth mesh |
|
Wi-Fi |
Complete 2.4GHz Wi-Fi subsystem |
|
Interface |
ESP32S3: 1x UART, 1x IIC, 1x IIS, 1x SPI(connect to SX1262),11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED, 1x Reset button, 1x Boot button Wio-SX1262: 1xUser button, 1xSPI(connect to ESP32S3) |
|
Power |
Input voltage (Type-C): 5V Input voltage (BAT): 4.2V |
|
Charging battery current: 100mA |
|
|
Working Temperature |
-40°C ~ 65°C |
|
Dimensions |
21 x 17.8mm |
